zui大載重Maximum load capacity（t）

0.8

鬥容Bucket rated capacity（m)³

0.3

卸載高度Dumping height（mm)
（at 45°）

1780

zui大舉升高度Lifting Height（mm)

3140

卸載距離Dumping Reach（mm)

980

zui大舉升力Max. Lifting weight（kg）

600

zui大崛起力Max. Excavation Force<$"（kn)

1000

zui大爬坡度Max. Grade ability

30°

zui大轉彎角度Max. Turning Angel

30°±1

後橋搖擺度數Swing degree of the rear axl→₩e

7°

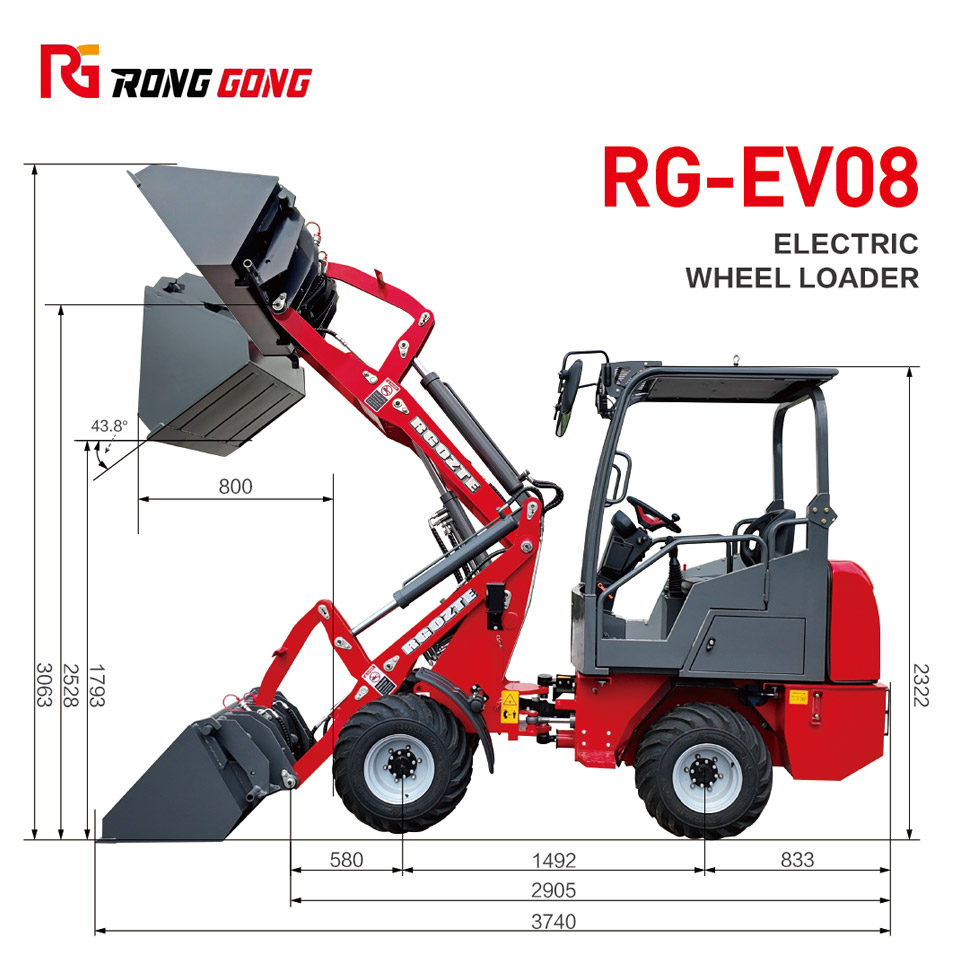

Dimensions. &.Weight

總長Overall length（Bucket on Ground position∑∏φ）mm

3840

鬥寬Bucket width（overall width）

1160

高度Overall Height(mm)

2330

輪距Wheel base(mm)

850

zui小離地高度Min Ground C←♥learance(mm)

240

淨重Net Weight（kg)

1980kg

Battery

電瓶型号Battery Model No.

6-EVF-203A

電流rated capacity（3hr)

200Ah

電瓶數No.of battery groups

12

電壓Rated Voltage

72V

工作小時Working hours$ ‌↑（h）

4-5h

Transmission System

液壓系統Hydraulic System

馬達型号Motor No.

CBHV

電壓Voltage

72V

功率Power

5000W

排量Displacement（ml/r)

18

輪胎Tyres

型号Type

26*1200-12

工作壓力working pressure（mpa)

0.3

數量Qty

4

Steering System

轉向類型Type of Steering Hydrauli ¶c System

全液壓轉向Full Hydraulic Steering ↕§System

系統壓力System Pressure（mpa)

16

轉向泵Type of Steering Pump

External Gear Pump

轉向油缸孔距Steering Cylinder Bore÷≠（mm)

63

數量Qty（pc）

1

Braking System

手刹Service Brake

Drum Brake

刹車鼓Brake Drum（mm)

250

制動Parking Brake

Drum Brake

分流閥Distribution Valve

型号Model

DL10

類型Type

Triple valve stem

卸載油缸-孔距Dumping Cylinder-Bore

Ø80

舉升油缸-孔距 Lifting Cylinder-Bore

Ø63

Oil Capacity

液壓油箱容量Hydraulic Oil Tank（L)

30

刹車油油量Brake Fluid（L)

0.8
